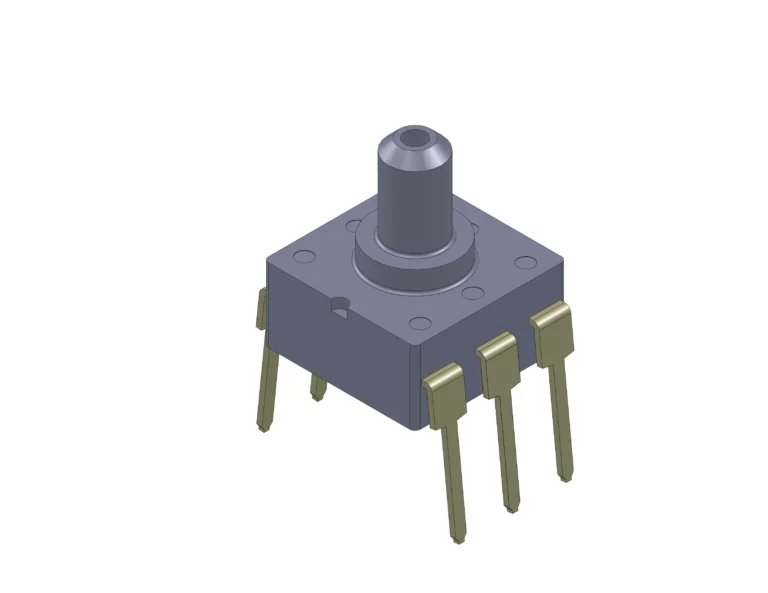

AXCA Series
The amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a ratiometric 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.
Features
- 0.3 to 150 psi pressure ranges
- Ratiometric 4V output
- Temperature compensated
- Calibrated zero and span
Application areas
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.
Similar products:
- 0 to 30 inH2O and 5 to 150 psi and 15 to 150 psia pressure ranges
- 0.9V to 1.8V supply voltage
- Less position sensitivity
Pressure sensors – BLCR Series
- Pressure ranges from 1 to 30 inH2O
- 1.8V to 3.3V supply voltage
- Dual-Die Reference technology
Pressure sensors – ACPC Series
- 4 inH2O to 100 psi pressure ranges
- Supply voltage up to 16V
- Calibrated offset and span
Pressure sensors – MSDX Series
- Pressure ranges from 5 in H2O to 100 psi
- Supply voltage up to 20V
- Low-cost, small DIP package
- Pressure ranges from 1 inH2O to 150 psi
- 1.8 to 3.6V supply voltage
- Digital I2C interface with 16 bit resolution
- Pressure ranges from 5 inH2O to 60 inH2O
- Low and variable supply voltage from 1.68V to 3.6V
- High resolution 16/17/18 bit output
Sensor variations:
0.3 PSI-D-4V-MIL, 0.3 PSI-D-4V-MIL-A4DAF-N, 0.3 PSI-D-4V-PRIME, 0.3 PSI-G-4V, 0.3 PSI-G-4V-MIL, 1 PSI-D-4V-A4DAQ-P, 1 PSI-D-4V-MIL, 1 PSI-D-4V-MIL-A4DAF-N, 1 PSI-G-4V, 100 PSI-A-4V-PRIME, 100 PSI-D-4V, 100 PSI-G-4V, 100 PSI-G-4V-A4EAF, 100 PSI-G-4V-PRIME, 120 CMH2O-D-4V, 120 CMH2O-D-4V-PRIME, 15 PSI-A-4V, 15 PSI-A-4V-MIL, 15 PSI-A-4V-MIL-A4DAF-N, 15 PSI-A-4V-PRIME, 15 PSI-D-4V, 15 PSI-D-4V-MIL, 15 PSI-D-4V-PRIME, 15 PSI-G-4V-MIL, 15 PSI-G-4V-PRIME, 150 MBAR-D-4V, 150 PSI-D-4V, 150 PSI-G-4V, 2.5 PSI-D-4V, 2.5 PSI-G-4V, 30 PSI-A-4V-A4AAFP, 30 PSI-A-4V-PRIME, 30 PSI-D-4V, 30 PSI-D-4V-PRIME, 30 PSI-G-4V-A4BAQ-P, 30 PSI-G-4V-A4DAQ-P, 30 PSI-G-4V-A4EAF, 300 MMHG-G-2V-SSI, 5 PSI-D-4V, 5 PSI-D-4V-MIL-A4DAF-N, 5 PSI-D-4V-PRIME, 5 PSI-G-4V, 75 PSI-D-4V-ACN,
