Series 99
Miniature high speed and pressure gas control valve
Series 99 solenoid valves offer outstanding potential for precision control of gases. Combining high speed, ultra low leak rate, high flow, and high temperature capability, in a small size. This rugged valve operates with extreme repeatability and is constructed of non-corroding, passivated stainless steel. Series 99 coils are rated for continuous duty and are potted to protect against the environment.
Features
- Smallest footprint in its class
- 100% duty cycle in environmental temperatures of up to to 221°F (105°C)
- High speed response times of less than 6 ms eliminate delays in the system
- 100% tested to leak-tight 1 x 108 atm cc/sec helium
- Pressures up to 1,250 psi (86.2 bar)
- Available with a variety of fittings, orifices, seals, and voltages to match your application
- Configurations available to handle corrosive gasses
- Hydrocarbon and Lubricant free
- RoHS compliant
There's more than meets the eye
This valve option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other valve options.
Similar products:

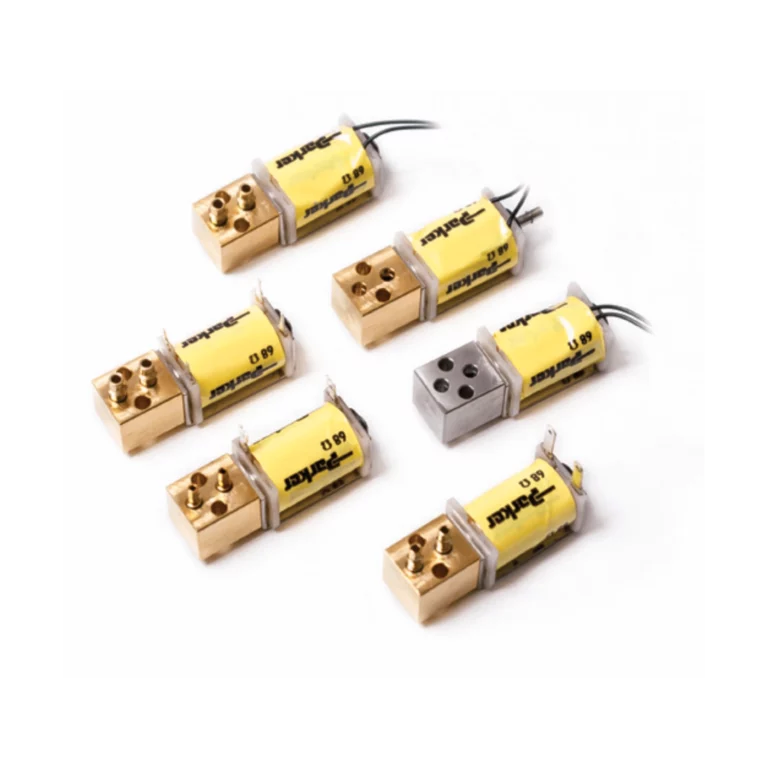

Valves – Switching Valves – Series 11
- Wide range of available electrical connections
- Available Analytical and Oxygen Service Clean
- RoHS compliant
Valves – Switching Valves – Series 9-Gas
- 100% duty cycle in environmental temperatures of up to (105°C)
- pressures up to 1,250 psi (86.2 bar)
- Hydrocarbon and lubricant free
Valves – Switching Valves – Series 9-Liquid
- High speed response times of less than 6 ms
- Pressures up to 1250 psi (86.2 bar)
- RoHS compliant

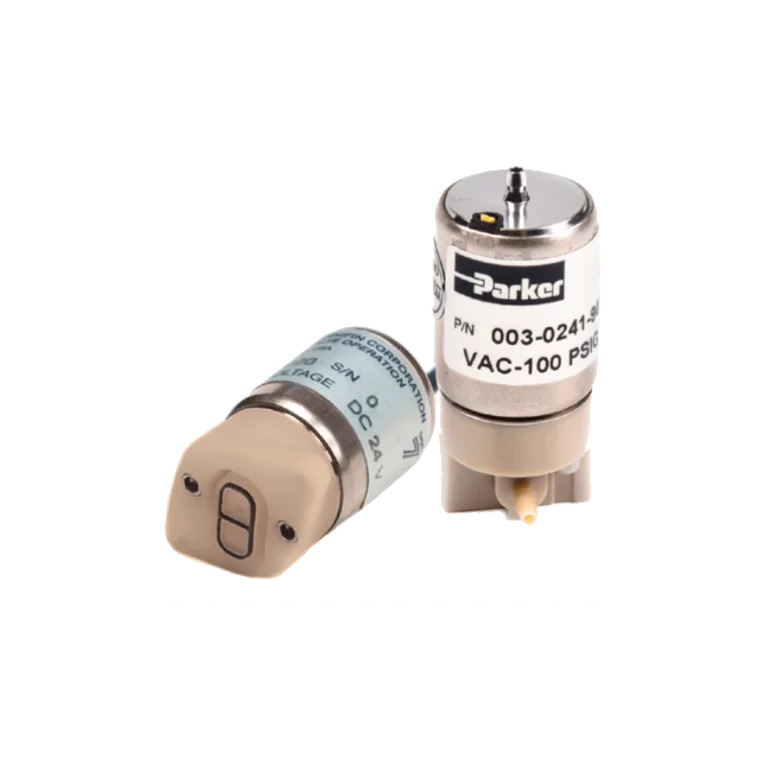

Valves – Switching Valves – Series 3
