ASTD Series

With pressure ranges from 1 mbar to 10 bar and a total pressure accuracy of up to 0.5% FS, the ASTD series high-precision pressure sensor ensures precise measurements. Its 15-bit A/D resolution and outstanding offset stability make it ideal for demanding environments. The sensor offers a digital SPI or I2C output, operating on a 3V or 5V supply, for easy integration into various systems.

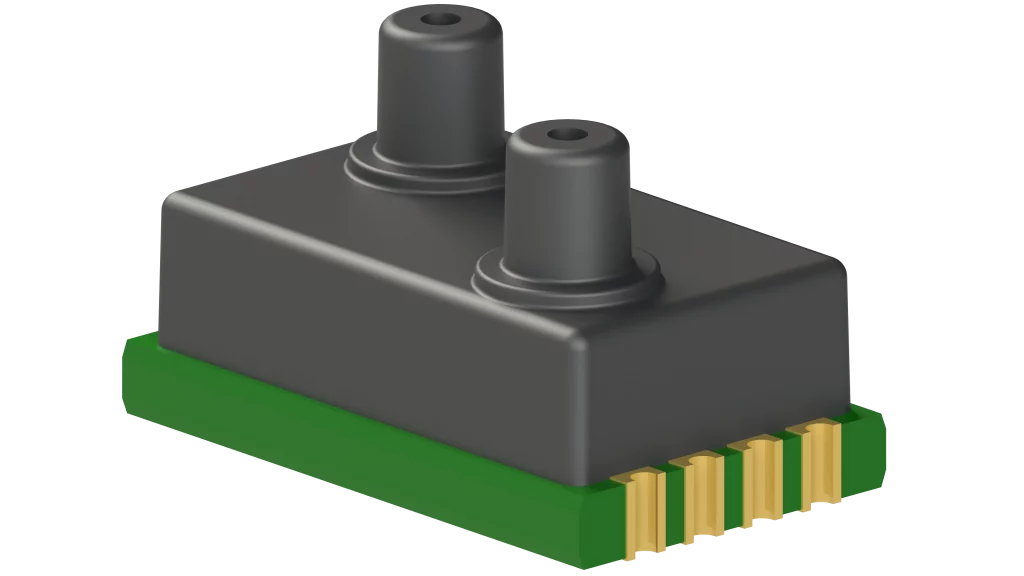

Engineered with a small footprint and low profile, it’s optimized for SMT mounting and features straight vertical or horizontal pressure ports, ready for direct manifold assembly. Suitable for all non-corrosive gases and liquids, the ASTD series sensor is your reliable choice for accurate, stable pressure monitoring.

Features

  • Pressure ranges from 1 mbar to 10 bar
  • Single 3V or 5V supply
  • Max. output current 1 mA
  • Digital SPI or I2C output
  • Temperature compensated range 0 … 70 °C
  • Operating temperature range -25 … +85 °C
  • Total pressure accuracy down to max. 0.5 %FS
  • 15 bit A/D resolution
  • Outstanding offset stability
  • Small footprint, low profile
  • Pressure ports for direct manifold assemblies
Data sheet
Request sample

Application areas

There's more than meets the eye

This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.

Alternatively have a look at our other sensor options.

there is more than meets the eye like in an iceberg

Similar products:

Sensor variations:
ASTD-B001-G-HNI3-N, ASTD-B001G-A-NI3N, ASTD-B001G-H-NI3N, ASTD-M010D-H-NI3N, ASTD-M020D-H-NS5T, ASTD-MF02G-H-NI5N
