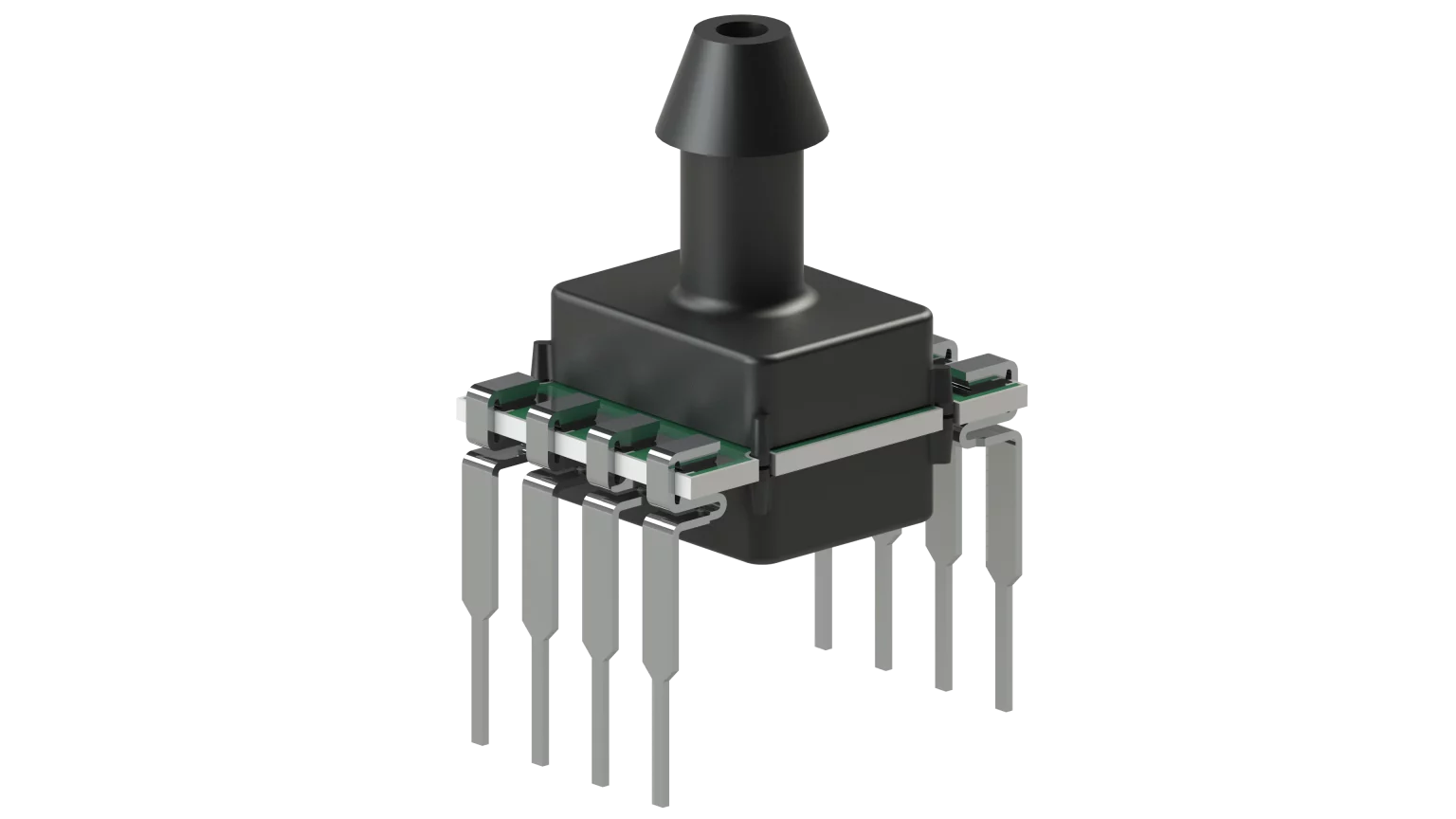

ELVE Series

The ELVE Series pressure sensors are based on All Sensors’ ultra low pressure CoBeam2 TM Technology. This innovative sensing element technology provides pressure sensors with best in class ultra low pressure sensing which reduces pack­age stress susceptibility, resulting in improved overall long term stability and vastly improved position sensitivity.

The ELVE Series gives design engineers outstanding flexibility with the variety of choices in package combination.

The digital interface eases integration of the sensors into a wide range of process control and measurement systems, allowing direct connection to serial communications chan­nels. For battery-powered systems, the sensors can enter very low-power mode between readings to minimise load on the power supply.

These calibrated and compensated sensors provide accurate, stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases. A protective parylene coating is optionally available for moisture/harsh media protection for pressure ranges starting at ±25 mbar and above.

Features

  • 100 mbar to 10 bar
  • Digital SPI output
  • 3V or 5V supply voltage options
  • All Sensors’ superior CoBeam2 TM Technology
  • Various lead and port options available

There's more than meets the eye

This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.

Alternatively have a look at our other sensor options.

there is more than meets the eye like in an iceberg

Similar products:

Sensor variations:
ELVE-B005G-HAND-I-NTE3, ELVE-B005G-HANJ-I-NTE3, ELVE-B005G-HANJ-I-PTE5, ELVE-B010G-HAND-C-NTE5, ELVE-B010G-HAND-I-NTE3, ELVE-B010G-HANJ-I-NTE5, ELVE-B010G-HANJ-I-PTE5, ELVE-B010G-HKND-I-PTE3, ELVE-B010G-HKNJ-I-PTE3, ELVE-B010G-HNND-I-PTE3
