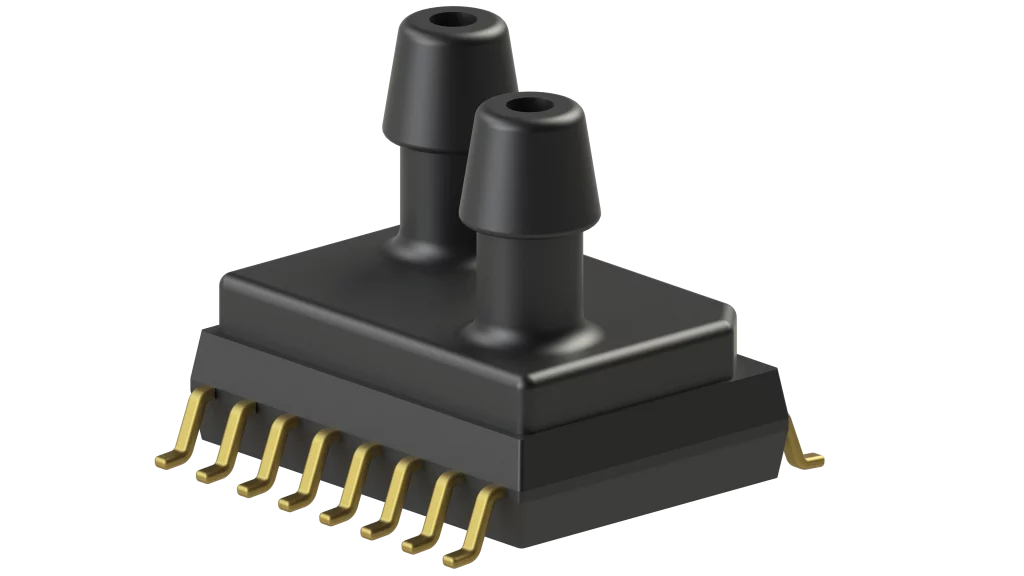

DLC Series
The DLC Series Compact High Resolution Sensor is based on All Sensors’ CoBeam²™ Technology. This reduces package stress susceptibility, resulting in improved overall long term stability. This technology breakthrough advances the state of the art for piezoresistive pressure sensors beyond what has been achieved for low pressure sensing using silicon based strain technology.
The low supply voltage allows for integration of the sensors into a wide range of process control and measurement systems, as well as direct connection to I²C serial communications channels. The DLC series offers 16 bit digital resolution. The digital interface options ease integration of the sensors into a wide range of process control and measurement systems, allowing direct connection to serial communications channels. For battery-powered systems, the sensors can enter very low-power modes between readings to minimize load on the power supply.
These calibrated and compensated sensors provide accurate, stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air and dry gases. A protective parylene coating is optionally available fro moisture/harsh media protection.
Features
- Pressure ranges from 1 inH2O to 150 psi
- 16 bit digital resolution
- I²C interface
- 1.8 to 3.6V supply voltage
- 1.5% total error band, depending on pressure range
- Compact packages, PC board mountable in SMT and DIP lead configurations
- Multiple port options available
- Compensated temperature range from 0°C to 70°C
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.
Similiar products:
Pressure sensors – Evaluation Kit EK-02
- Simplified testing of pressure sensors
- Data display in user-friendly units
- Seamless data capture to CSV files
Pressure sensors – AUAV Series
- Differential pressure ranges from ±5 inH2O to ±30 inH2O
- Supply voltage 3.3 VDC
- High precision airspeed and altitude measurement
Pressure sensors – DLHR Series
- Pressure ranges from 0.5 inH2O to 60 inH2O
- Low and variable supply voltage from 1.68V to 3.6V
- Dual-Die Reference technology
Pressure sensors – ASTD Series
- Pressure ranges from 1 mbar to 10 bar
- Single 3V or 5 V supply
- Small footprint, low profile
Pressure sensors – ASSD Series
- Pressure ranges from 200 mbar to 35 bar
- 5V supply voltage
- Rugged stainless steel isolated package
Pressure sensors – ELVX Series
- Pressure ranges from ±0.5 to ±60 inH2O
- 3.3V or 5V supply voltage
- PCB surface mount
Sensorvariationen:
DLC-005D-D4, DLC-005D-LD2, DLC-005D-LD4, DLC-005D-U1, DLC-005D-U2, DLC-005G-U1, DLC-005G-U2, DLC-015D-D4, DLC-015D-LD2, DLC-015D-LD4, DLC-015D-U1, DLC-015D-U2, DLC-015G-U2, DLC-030D-D4, DLC-030D-LD4, DLC-030D-U1, DLC-030D-U2, DLC-100D-D4, DLC-100D-LD4, DLC-100D-U1, DLC-100D-U2, DLC-100G-U2, DLC-100G-U2-P, DLC-150D-D4, DLC-150D-LD4, DLC-150D-U1, DLC-150D-U2, DLC-150G-U2, DLC-L01D-D4, DLC-L01D-LD2, DLC-L01D-LD4, DLC-L01D-U1, DLC-L01D-U2, DLC-L01G-U2, DLC-L02D-D4, DLC-L02D-LD2, DLC-L02D-LD4, DLC-L02D-U1, DLC-L02D-U2, DLC-L02G-U2, DLC-L05D-D4, DLC-L05D-LD2, DLC-L05D-LD4, DLC-L05D-U1, DLC-L05D-U2, DLC-L05G-U1, DLC-L05G-U2, DLC-L10D-D4, DLC-L10D-LD2, DLC-L10D-LD4, DLC-L10D-U1, DLC-L10D-U2, DLC-L10G-U1, DLC-L10G-U2, DLC-L20D-D4, DLC-L20D-LD2, DLC-L20D-LD4, DLC-L20D-U1, DLC-L20D-U2, DLC-L20G-U2, DLC-L30D-D4, DLC-L30D-LD2, DLC-L30D-LD4, DLC-L30D-U1, DLC-L30D-U2, DLC-L30G-U1, DLC-L30G-U2, DLC-L60D-D4, DLC-L60D-LD2, DLC-L60D-LD4, DLC-L60D-U1, DLC-L60D-U2, DLC-L60G-U2
