ASSD Series
The sensor is capable to generate a digital output signal. The device runs a cyclic program, which will store a corrected pressure value with 13 bit resolution about every 500 μs within the output registers of the internal ASIC. In order to use the sensor for digital signal readout, it should be connected to a bidirectional I2C-bus.
According to the I2C-bus specification, the bus is controlled by a master device, which generates the clock signal, controls the bus access and generates START and STOP conditions. The sensor is designed to work as a slave, hence it will only respond to requests from a master device.
Features
- 200 mbar to 35 bar, 3 to 500 psi absolute, gage or vacuum pressure (custom pressure ranges on request)
- Amplified analog output and I2C bus interface (SPI on request)
- Precision ASIC signal conditioning
- Calibrated and temperature compensated

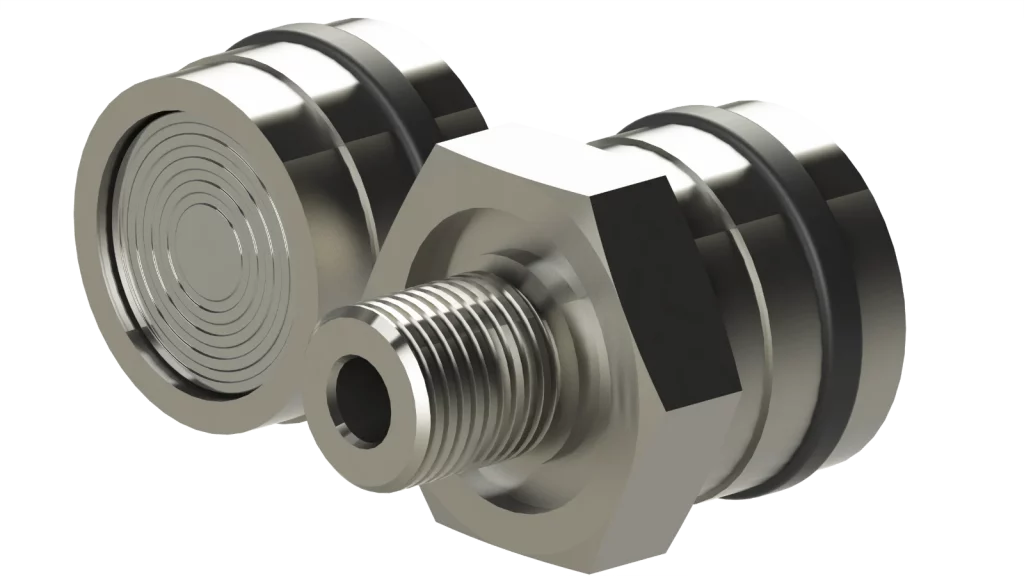

- Rugged stainless steel isolated package
- RoHS compliant

Application areas
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.

Similar products:

Pressure sensors – ASTE Series
- Pressure ranges from 1 mbar to 10 bar
- Single 3V or 5 V supply
- Small footprint, low profile

- 3V, 3.3V and 5V supply voltage
- Amplified analog and digital outputs (I2C oder SPI)
- Custom calibrations

Pressure sensors – AUAV Series
- Differential pressure ranges from ±5 inH2O to ±30 inH2O
- Supply voltage 3.3 VDC
- High precision airspeed and altitude measurement

Pressure sensors – DLHR Series
- Pressure ranges from 0.5 inH2O to 60 inH2O
- Low and variable supply voltage from 1.68V to 3.6V
- Dual-Die Reference technology

Pressure sensors – ASSD Series
- Pressure ranges from 200 mbar to 35 bar
- 5V supply voltage
- Rugged stainless steel isolated package

Pressure sensors – ELVX Series
- Pressure ranges from ±0.5 to ±60 inH2O
- 3.3V or 5V supply voltage
- PCB surface mount
Sensorvariationen:
ASSD-B001D-1, ASSD-B010G-9, ASSD-B020G-9, ASSD-B3x5A-9, ASSD-B3x5G-9, ASSD-M200D-1, ASSD-M200G-9, ASSD-M700G-9
