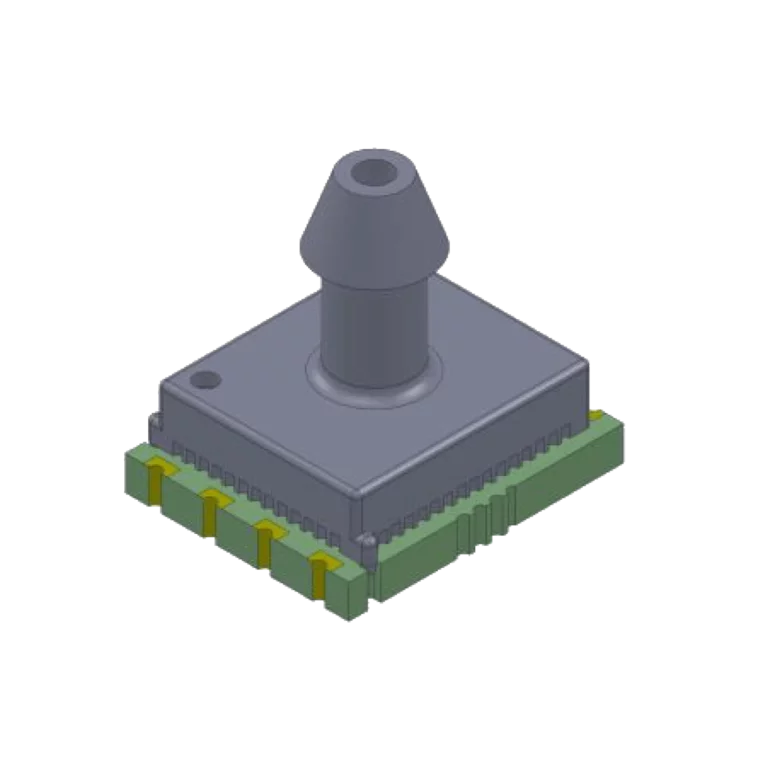

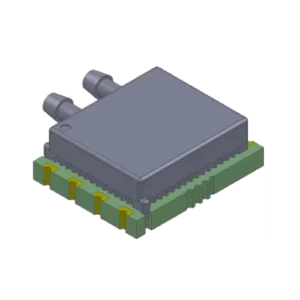

ELVX Series
The ELVX Analog and Digital Pressure Sensor Series are leadless with dual die configuration which provides best-in-class stability for low and ultra-low pressure applications. These calibrated and compensated sensor provides accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air and other dry gases. A protective parylene coating is optionally available for moisture/harsh media protection.
Features
- ±0.5 inH2O to ±60 inH2O
- Gage or differential pressure
- Precision ASIC conditioning
- Digital I²C, SPI or analog only option
- 3.3V and 5V supply voltage options
- PCB surface mount


There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.

Similar products:

Pressure sensors – DLHR Series
- Pressure ranges from 0.5 inH2O to 60 inH2O
- Low and variable supply voltage from 1.68V to 3.6V
- Dual-Die Reference technology

Pressure sensors – ELVX Series
- Pressure ranges from ±0.5 to ±60 inH2O
- 3.3V or 5V supply voltage
- PCB surface mount

- Pressure ranges from 1 to 30 inH2O
- 0.9V to 1.8V supply voltage
- 0.3% linearity

Pressure sensors – BLVR Series
- 1 to 30 inH2O pressure ranges
- 1.8V to 3.3V supply voltage
- Dual-Die Reference technology

Pressure sensors – ELVR Series
- Pressure ranges from 1 inH2O to 30 inH2O
- Supply voltage of 3V and 5V
- Digital I2C or SPI interface and analog output

Pressure sensors – ELVA Series
- 100 mbar to 10 bar pressure ranges
- 3V or 5V supply voltage options
- Analog output
Sensor variations:
ELVX-L01D-HRRN-C-N2A4, ELVX-L02G-HRRN-C-N2A4
Tagged Relative, Difference, Analogue, Digital
