ELVX Series
The ELVX Analog and Digital Pressure Sensor Series are leadless with dual die configuration which provides best-in-class stability for low and ultra-low pressure applications. These calibrated and compensated sensor provides accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air and other dry gases. A protective parylene coating is optionally available for moisture/harsh media protection.
Features
- ±0.5 inH2O to ±60 inH2O
- Gage or differential pressure
- Precision ASIC conditioning
- Digital I²C, SPI or analog only option
- 3.3V and 5V supply voltage options
- PCB surface mount
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.
Similar products:
Pressure sensors – DLLR Series
- 10 or 30 inH2O pressure range
- Low and variable supply voltage from 1.68V to 3.6V
- Better than 0.1% accuracy
- 5 to 60 psi and barometric pressure ranges
- 3.3V or 5.0V supply voltage
- High resolution 14 Bit output
Pressure sensors – DLVR Series
- Pressure ranges from 5 inH2O to 60 inH2O
- 3.3V or 5V supply voltage
- Dual-Die Reference technology
Pressure sensors – MDCX Series
- Pressure ranges from 1 inH2O to 30 inH2O
- Max. 16V supply voltage
- Matched pressure port volumes

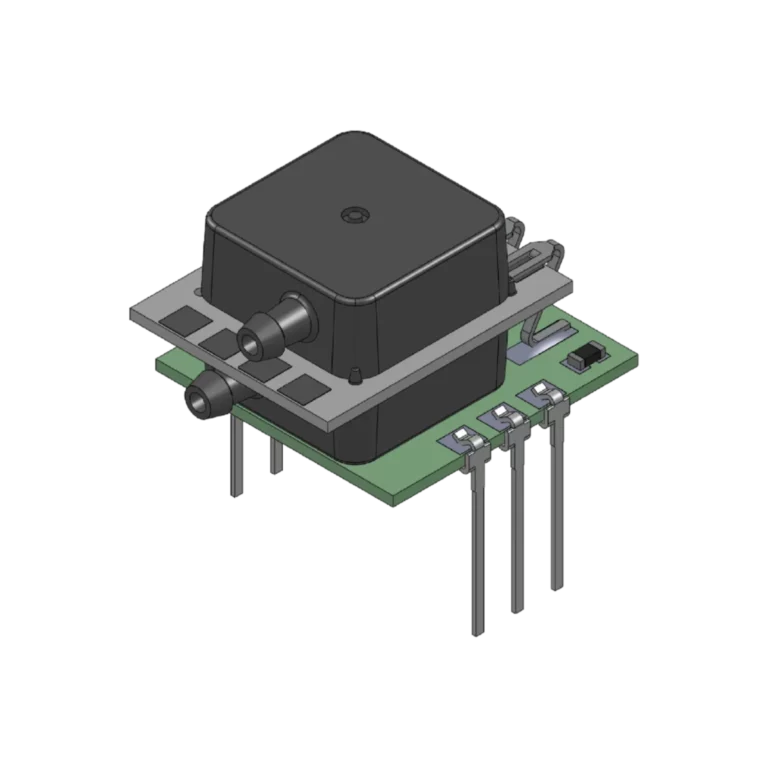

Pressure sensors – MLDX Series
- Pressure ranges from 5 inH2O to ±100 psi
- Matched pressure port volumes
- 10V supply voltage
Pressure sensors – ADCA Series
- Pressure ranges from 0.25 to 60 inH2O
- 5V supply voltage
- Ratiometric 4V amplified output
Sensor variations:
ELVX-L01D-HRRN-C-N2A4, ELVX-L02G-HRRN-C-N2A4
