SAMP Series
The Miniature Amplified line of pressure sensors is based upon technology developed over years of development in the pressure sensor
industry. This model provides a ratiometric 4-volt output with superior output characteristics. The sensor housing has been designed
specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration
enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is
internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids
such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.
Features
- 0.3 to 30 psi pressure ranges
- Ratiometric 4V output
- Temperature compensated
- Calibrated zero and span
- Supply supply voltage 4.5 to 5.5 Vdc
- Compensated 5 to 50° C
- Operating -25 to 85° C
Application areas
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.
Similar products:
Pressure sensors – ELVX Series
- Pressure ranges from ±0.5 to ±60 inH2O
- 3.3V or 5V supply voltage
- PCB surface mount
- Pressure ranges from 1 to 30 inH2O
- 0.9V to 1.8V supply voltage
- 0.3% linearity

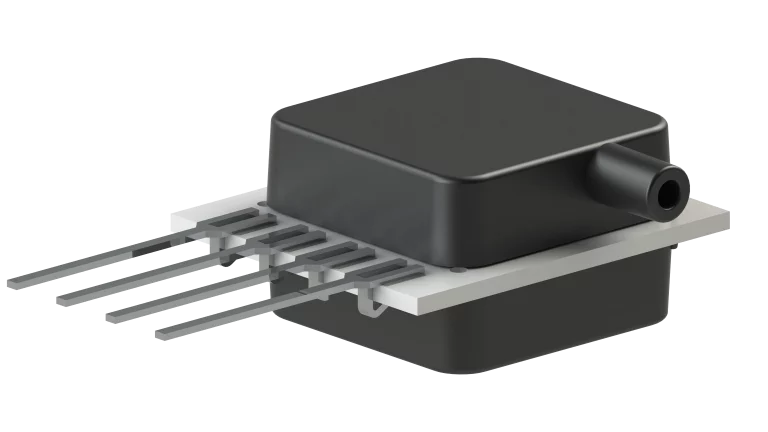

Pressure sensors – BLVR Series
