BLV Series

The BLV Series Basic Sensor is based on All Sensors’ CoBeam2 TM Technology. The device provides a high output signal at a low operating voltage and reduces the overall supply voltage while maintaining comparable output levels to traditional equivalent basic sensing elements. This lower supply voltage gives rise to improved warm-up shift while the CoBeam2 TM Technology itself reduces package stress susceptibility resulting in improved overall long term stability. The technology also vastly improves position sensitivity compared to conventional single die devices.

This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The output is also ratiometric to the supply voltage and is operable
from 0.9 to 1.8 volts DC.

Features

  • Pressure ranges from 1 to 30 inH2O
  • 0.9V to 1.8V supply voltage
  • 0.3% linearity
  • Excellent position sensitivity
  • Improved warm-up shift distribution
  • Parylene coating available upon request

There's more than meets the eye

This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.

Alternatively have a look at our other sensor options.

there is more than meets the eye like in an iceberg

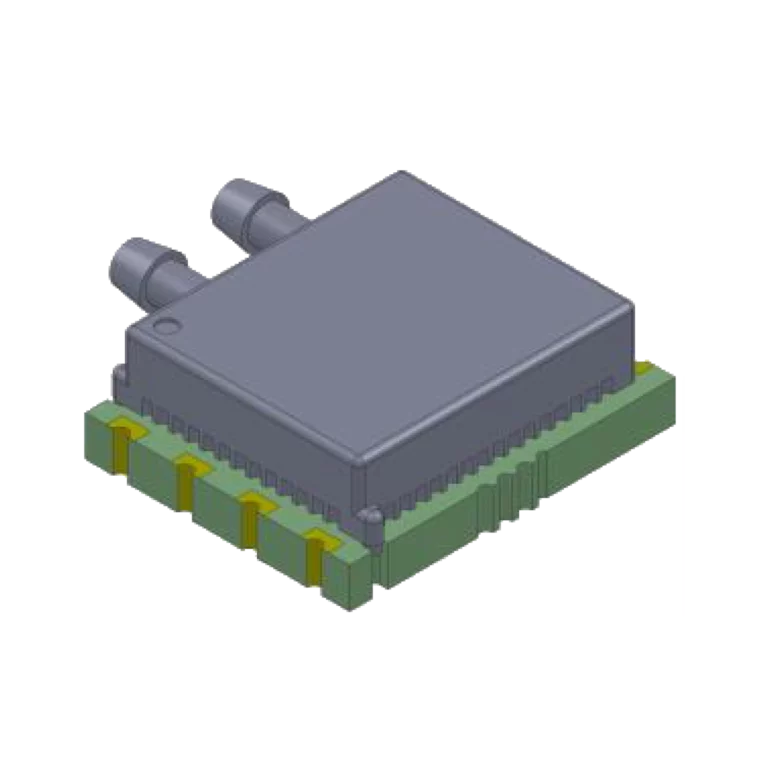

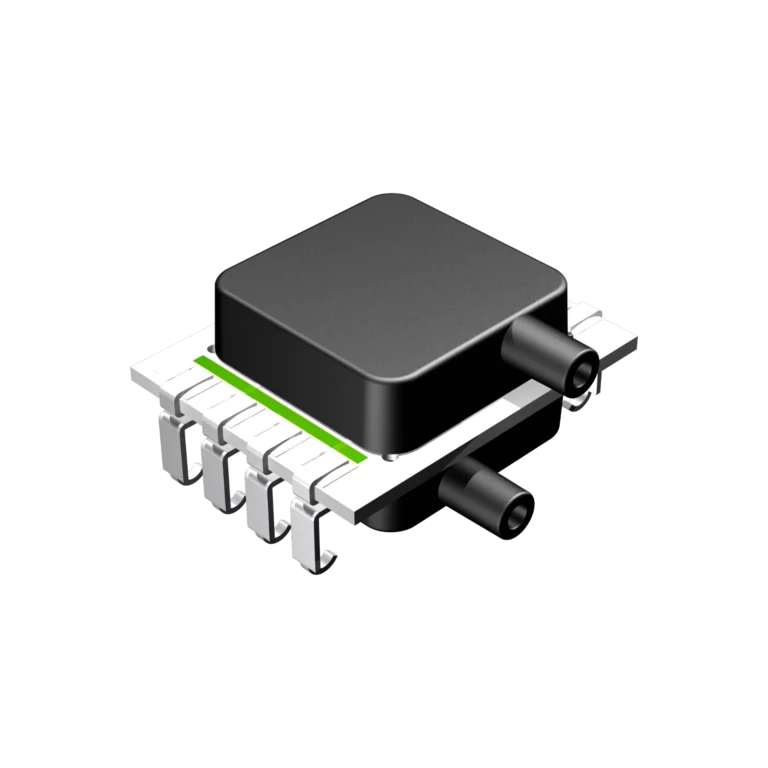

Similar products:

Sensor variations:
BLV-L01D-B1NS-N, BLV-L01D-B1NS-P, BLV-L01D-B2NS-N, BLV-L01D-BGNS-N, BLV-L05D-B1NS-N, BLV-L05D-B2NS-N, BLV-L10D-B1NS-N, BLV-L10D-B1NS-P, BLV-L10D-B2NS-N, BLV-L10D-BGNS-N, BLV-L10D-BTNS-N, BLV-L20D-B1NS-N, BLV-L20D-B2NS-N, BLV-L30D-B2NS-N
