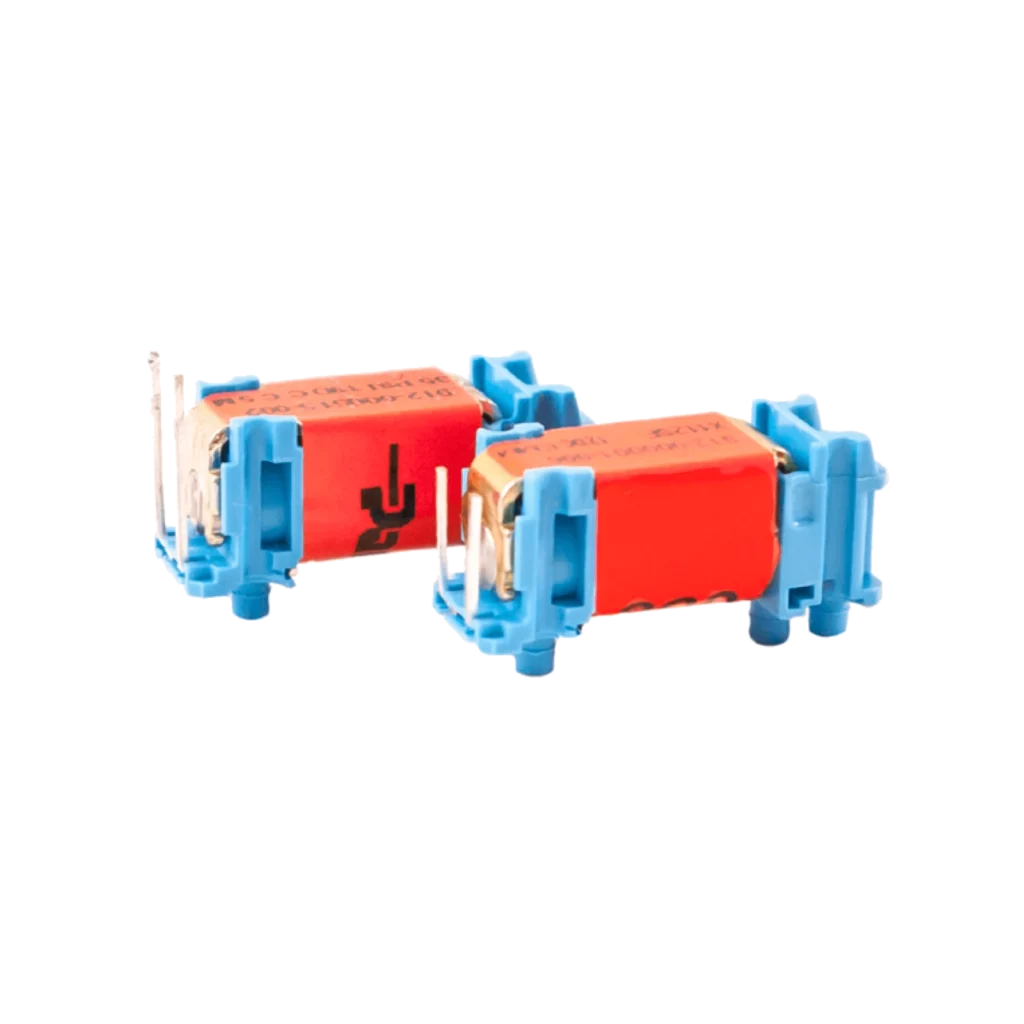

X-Valve Series
Miniature pneumatic solenoid valve
The X-Valve is a miniature pneumatic solenoid valve measuring only 8 mm in width. The compact size, light weight and low power consumption of the X-Valve is the ideal solution for portable applications and those applications with limited space and available power. The body construction of the X-Valve is suited for manifold or barbed-tube pneumatic connections and is available in 2-way normally closed and 3-way universal configurations.
Features
- Direct PC and side-to-side mounting enables compact and efficient system design
- Large range of pressure options (6, 30 and 100 psi) to meet various application requirements
- Light weight valve construction is ideal for portable applications
- Available low power model (0.5 Watt) for continuous duty applications
- RoHS compliant
There's more than meets the eye
This valve option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other valve options.
Similar products:
Valves – Switching Valves – ULC
- Best in class low carryover performance
- Simplifies OEM instrument design by using fewer valves
- CE, IP-65 Rating, REACH and RoHS compliant
Valves – Switching Valves – SRS
- Integrated manifold seal and PC mount capability
- Constucted of PBT and non-corrosive metal
- RoHS compliant
Valves – Switching Valves – Series 99-Gas
- Smallest footprint in its class
- High speed response times
- Pressures up to 1,250 psi
Valves – Switching Valves – Series 9-Gas
- 100% duty cycle in environmental temperatures of up to (105°C)
- pressures up to 1,250 psi (86.2 bar)
- Hydrocarbon and lubricant free
Valves – Switching Valves – Series 1-2
- Provides reliable operation for the life of your instrument
- RoHS compliant
- Low power for reduced heat generation
Valves – Switching Valves – R9
- High pressure options available up to 100 psi
- Low unswept volume to minimise carryover
- Particulate and crystallisation resistant
Variations:
X-1-03-L-F, X-1-12-L-F, X-2-12-L-F SOLENOID VALVE, X-2-24-L-F, X-1-03-S-F, X-1-12-S-F, X-2-12-S-F, X-2-24-S-F, X-1-05-S-F, X-1-05-L-F, X-2-03-S-F, X-2-03-L-F, X-5-03-S-F, X-5-03-L-F, X-1-24-S-F, X-1-24-L-F, X-5-12-S-F, X-5-24-S-F, X-5-12-L-F, X-5-24-L-F, X-1-03-L-F-TL, X-1-05-L-F-TL, X-1-12-L-F-TL, X-1-24-LF-TL, X-1-12-S-F-TL, X-5-05-L-F, X-5-05-S-F, X-2-05-L-F, X-2-05-S-F, X-1-03-L-E, X-1-12-L-E, X-1-03-S-E, X-1-12-S-E, X-1-05-S-E, X-1-05-L-E, X-1-24-L-E, X-1-03-L-S, X-1-03-S-S, X-1-05-L-S, X-1-05-S-S, X-1-12-L-S, X-1-12-S-S, X-1-24-L-S, X-1-24-S-S, X-6-03-L-F, X-6-12-L-F, X-7-12-L-F, X-7-24-L-F, X-6-03-S-F, X-6-12-S-F, X-7-12-S-F, X-7-24-S-F, X-6-05-S-F, X-6-05-L-F, X-7-03-S-F, X-7-03-L-F, X-8-03-S-F, X-8-03-L-F, X-6-24-S-F, X-6-24-L-F, X-8-12-S-F, X-8-24-S-F, X-8-12-L-F, X-8-24-L-F, X-8-05-L-F, X-8-05-S-F, X-7-05-L-F, X-7-05-S-F
