ALP Industrial Series

Liquid level switches



The ALP Industrial series of liquid level switches are engineered to support industrial-grade supply voltages and outputs, capable of directly driving higher power loads.

This solid-state sensor, controlled by a microcontroller, features an infrared LED and phototransistor that are optically aligned at the sensor tip when exposed to air. Upon immersion in liquid, the infrared light is dispersed, causing a shift in the output state. The sensor is designed to detect the presence or absence of a wide variety of liquids, whether oil- or water-based. It remains unaffected by ambient light and operates reliably even with foam in air or small bubbles in liquid.

A range of N and P type output configurations can sink or source up to 1 A.

Features

  • Solid state technology, no moving parts
  • Polysulfone or Trogamid® housing
  • High media compatibility
  • Compact design
  • High temperature devices available

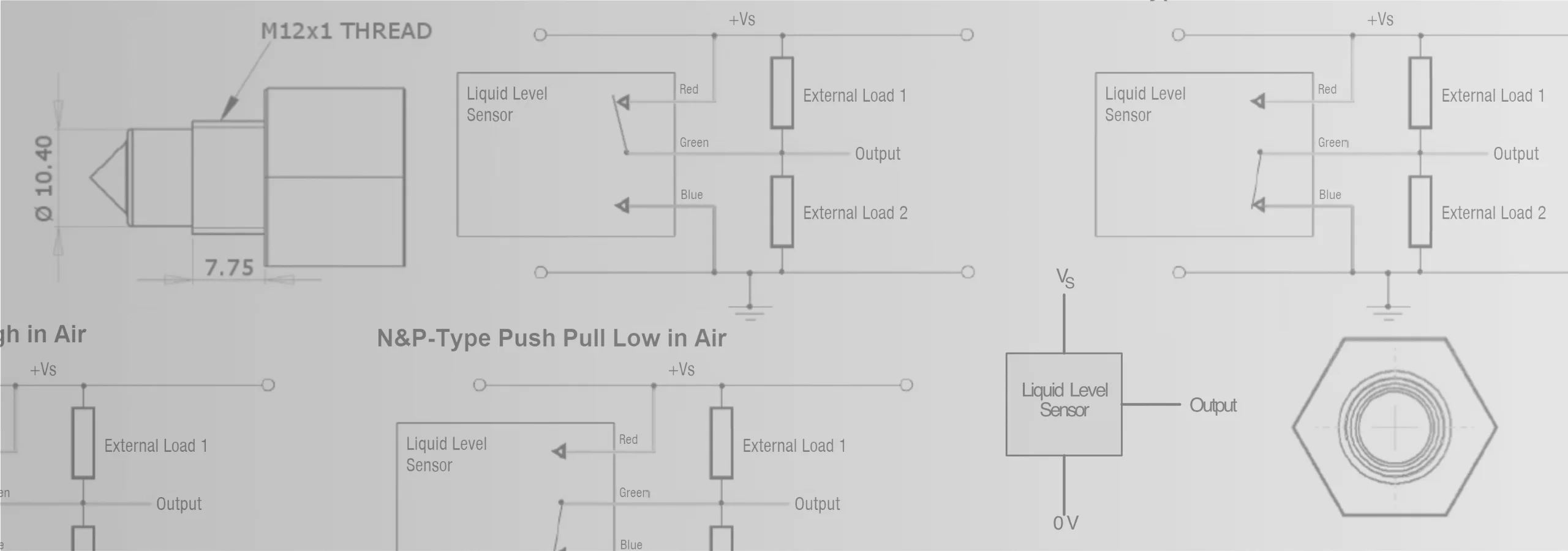

  • Push-Pull output
  • N and P type output configurations
  • Protection against reverse polarity, ESD, and transient over-voltage
  • Variety of mounting configurations available
  • Wide supply voltage range up to 15.4V
Data sheet
Application note

Application areas

There's more than meets the eye

This sensor option is not quite what you need? We happily customize every product exactly to your needs and to what your project or applications requires.

Alternatively have a look at our other sensor options.
