AAoA Series

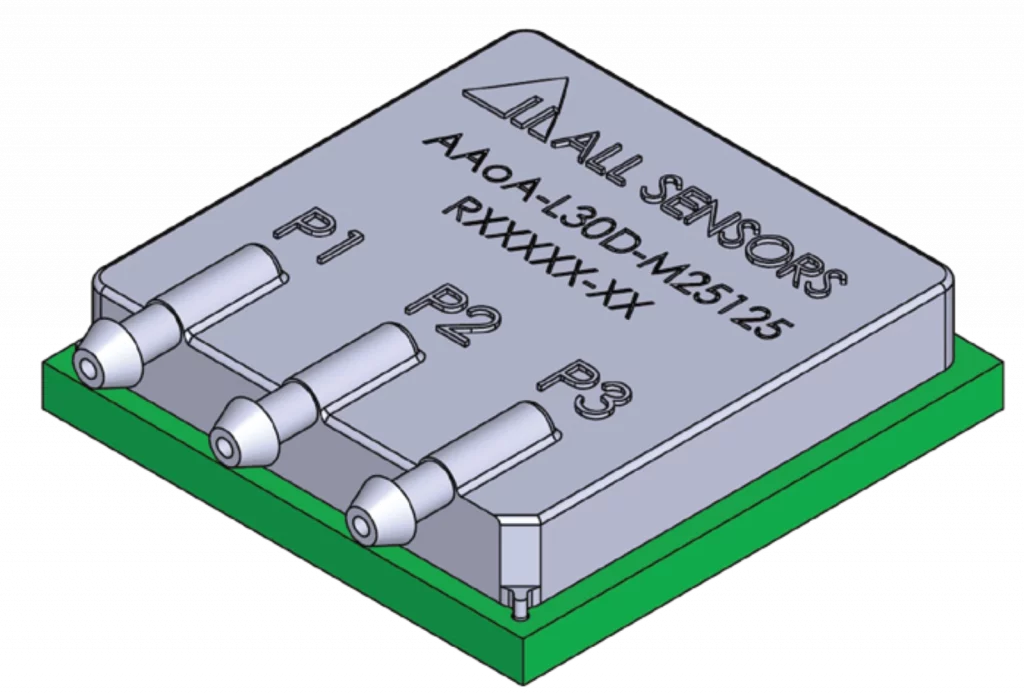

All Sensors Angle of Attack (AAoA) triple pressure sensor is designed for air data sensing systems tailored for UAV applications where precise, stable performance in mission-critical environments is essential. The AAoA Series integrates three sensors in one compact, factory calibrated package for accurate measurement of differential and absolute pressure to derive airspeed, altitude, and angle of attack.

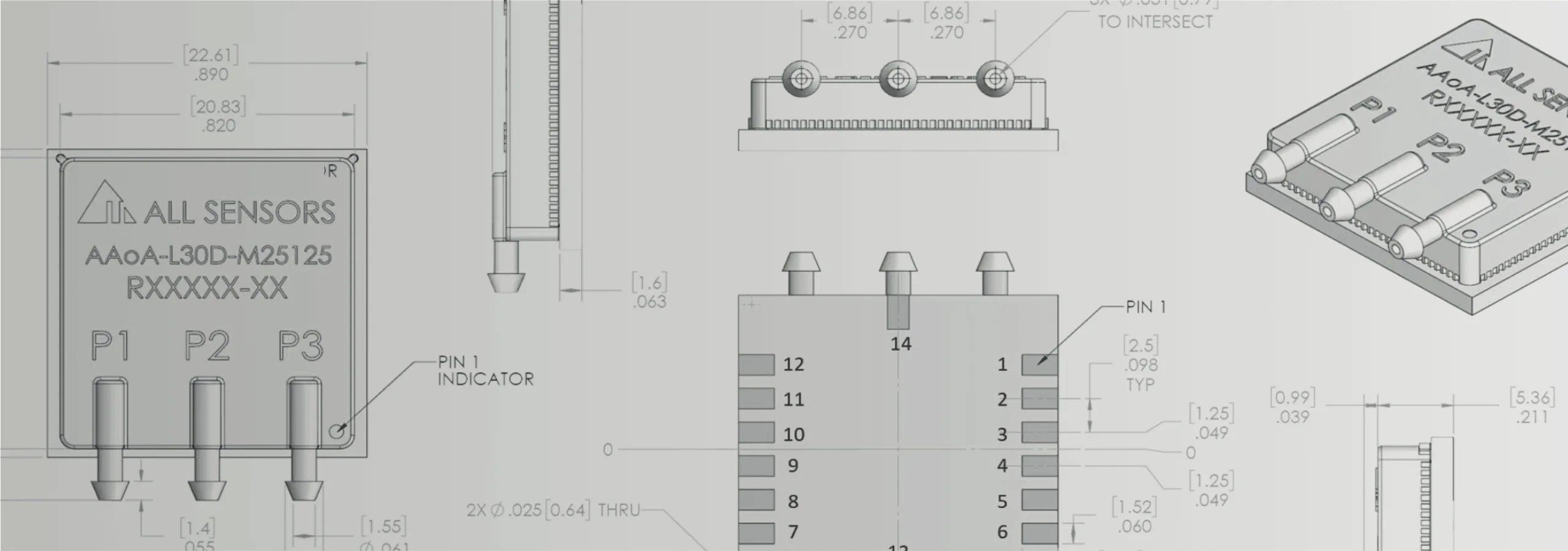

Optimised for seamless integration into AoA systems, the AAoA Series features a compact, leadless, PCB-mountable design compatible with automated SMT assembly. Digital output options include both I2C and SPI interfaces, while the low-profile side-port configuration requires only three connections – minimising space and system complexity.
Features
- Compact triple sensor design to measure two differential pressures and one absolute pressure as well as temperature
- Easy integration via internal manifold design
- Dual-die technology for stable low-pressure measurement during high-g flight manoeuvers
- Wide operating temperature range from -40°C to 85°C
- I2C or SPI interface with high 24-bit resolution
- Leadless surface mount design compatible with SMT automated assembly
Application areas
- Aerospace
- Commercial and defence UAVs (drones)
- Urban Air Mobility (UAM)
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.
