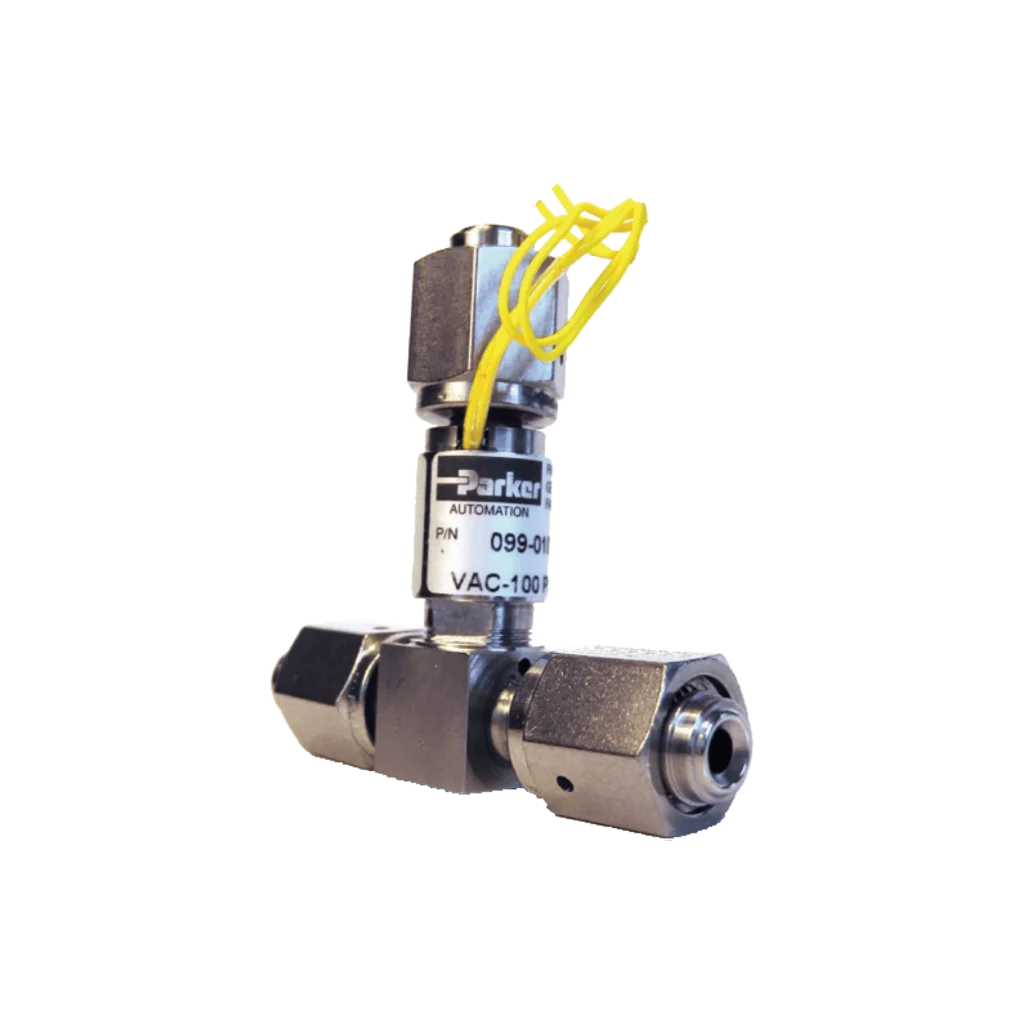

Series 99
Miniature high speed and pressure liquid dispense valve
Series 99 solenoid valves offer outstanding potential for precision control in liquid analysis. Combining high speed, ultra low leak rate, high flow, high pressure and high temperature capability, in a small size. This rugged valve operates with extreme repeatability and is constructed of non-corroding, passivated stainless steel. Series 99 coils are rated for continuous duty and are potted to exclude the environment.
Features
- Smallest footprint and highest performance in its class
- 100% duty cycle in environmental temperatures of up to 221°F (105°C)
- High speed response times of less than 5 ms eliminate delays in the system
- 100% tested to leak-tight 1 x 10-8 cc/sec/atm helium
- Pressures up to 1250 psi (86.2 bar)
- Available with a variety of fittings, orifices, seals, and voltages to match your application
- RoHS compliant

There's more than meets the eye
This valve option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other valve options.
