V² Series
Miniature pneumatic solenoid valve

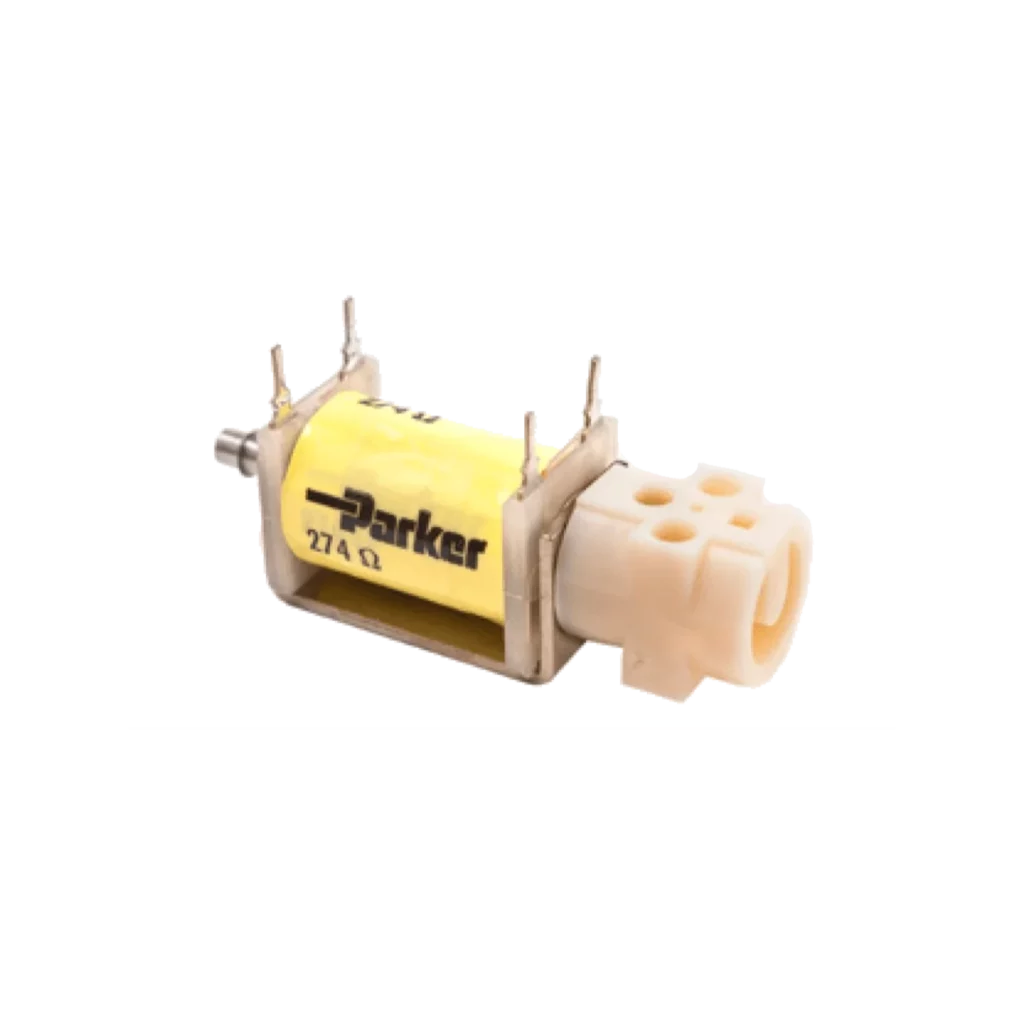

The V² miniature pneumatic solenoid valve is a proven product with a reputation for reliable and consistent performance. Designed for medical device and system manufacturers, the V² miniature pneumatic solenoid valve is made from lightweight PBT plastic and provides flexible mounting and termination options. The V² miniature pneumatic solenoid valve also offers pneumatic and electrical design flexibility. It is available in manifold mount or 1/8” (3 mm) barbed tube configurations and is also available with either wire lead, quick connect spade or 4 pin printed circuit board electrical termination.
Features
- Lightweight PBT plastic body to reduce system weight
- Manifold mount or molded barbed fittings for added system design flexibility
- Printed circuit board mount, quick connect spade or wire lead coil termination to ease integration
- Proven performance tested to 25 million life cycles
- RoHS compliant
There's more than meets the eye
This valve option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other valve options.
