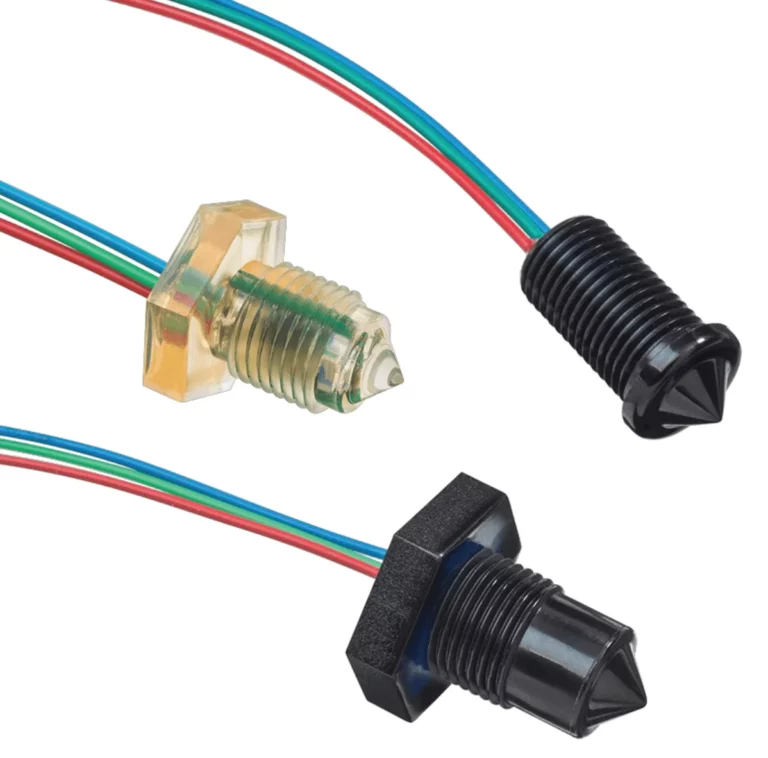

ALP Digital Series

Liquid level switches



The ALP digital series of liquid level switches are perfect for use in confined spaces where a compact, low-energy, and cost-effective sensing solution is required.

This sensor, controlled by a microcontroller, operates using solid-state technology, featuring an infrared LED and phototransistor that are optically aligned at the sensor tip when it is exposed to air. Upon submersion in liquid, the infrared light emitted by the ALP digital sensor is dispersed, causing the output state to change. The sensor is designed to detect the presence or absence of a wide variety of liquids, whether oil- or water-based. It remains unaffected by ambient light and operates reliably even with foam in air or small bubbles in liquid.

The TTL compatible push-pull output can sink and source up to 100 mA.

Features

  • Solid state technology, no moving parts
  • Polysulfone or Trogamid® housing
  • High media compatibility
  • Compact design
  • High temperature devices available
  • Push-Pull output
  • Protection against reverse polarity, ESD, and transient over-voltage
  • Variety of mounting configurations available
  • Wide supply voltage range up to 15.4V
Data sheet
Application note

Application areas

There's more than meets the eye

This sensor option is not quite what you need? We happily customize every product exactly to your needs and to what your project or applications requires.

Alternatively have a look at our other sensor options.
