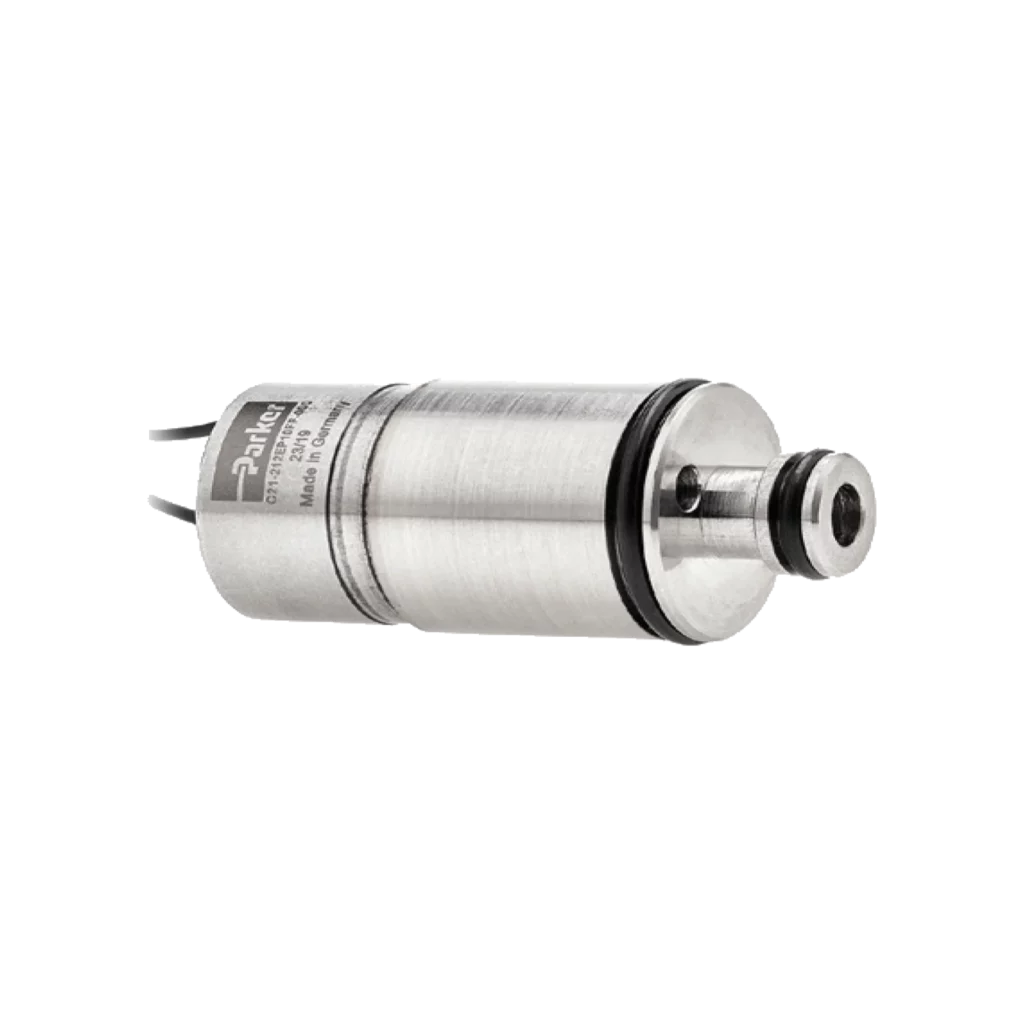

C21 Series
Miniature cartridge liquid valve
The Series C21 is a miniature cartridge style solenoid valve with a compact 21 mm diameter. This unique design combines compact size, light weight and low power consumption with high flow repeatability and fast response time over an exceptionally long life up to 20 million cycles. Available in 2-way configuration, the valve is manifold mounted utilizing a simple securing system reducing assembly time.
Features
- Variety of orifice sizes with pressures up to 145 psi (10 bar)
- Floating frictionless plunger enables reliable and repeatable operation up to 20 Million cycles
- Low power design reduces heat and energy consumption
- Compact reduces space and weight
- 100% calibrated ensuring minimal valve to valve variation
- RoHS & REACH compliant
There's more than meets the eye
This valve option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other valve options.
