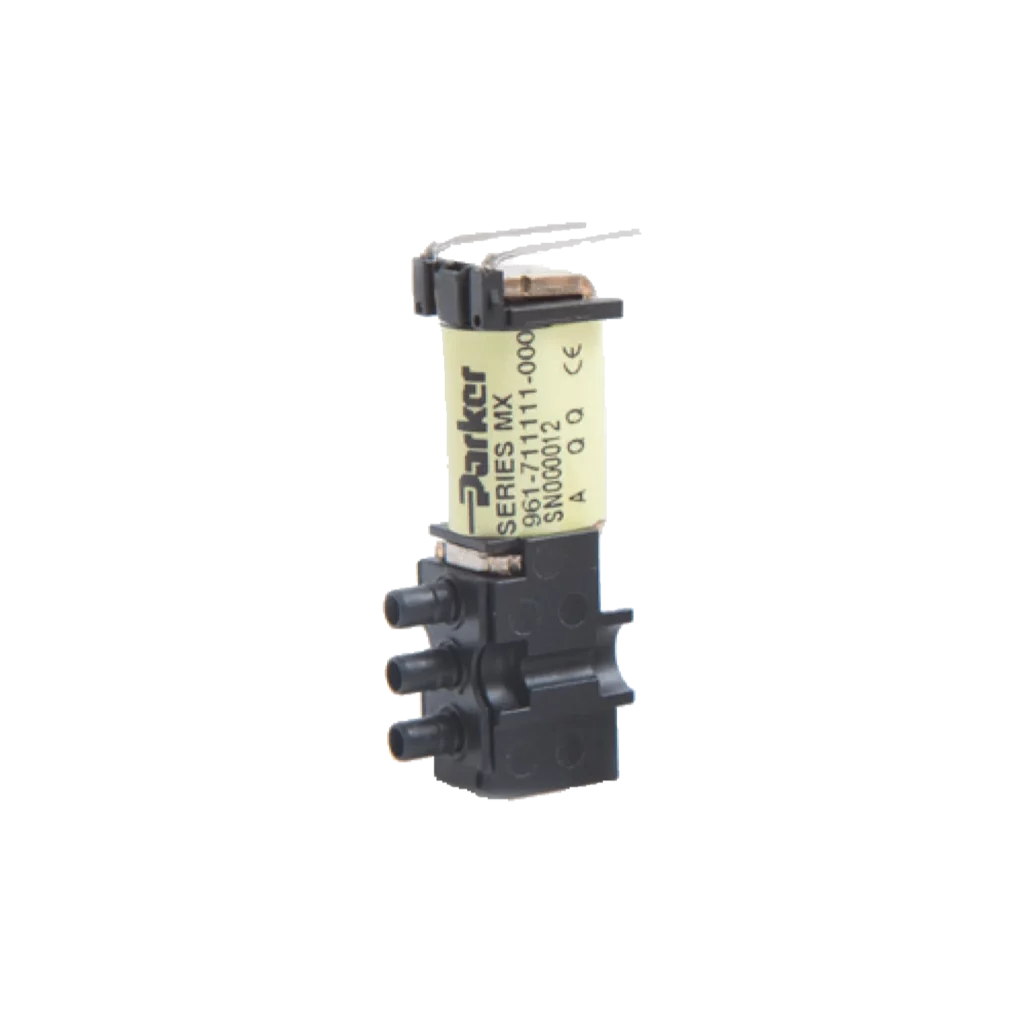

MX Series
Miniature pneumatic solenoid valve
The Series MX is a miniature solenoid valve that delivers high flow at low pressure in a compact, 10 mm wide size. Using hit and hold control, the Series MX miniature solenoid consumes very little power helping medical device manufacturers increase battery life and reduce system weight without sacrificing performance. The universal design supports manifold or barbed-tube mounting and is available in 2-way and 3-way configurations. The Series MX solenoid valve is an ideal solution for portable medical devices with limited space and power.
Features
- Small, 10 mm size enables compact integration and reduces device size
- Highest flow to power consumption ratio increases device battery life
- Lightweight 0.3 oz (8.5 g) design helps reduce portable device weight
- Universal barbed-tube or manifold mount eases valve integration
- CE and RoHS compliant
There's more than meets the eye
This valve option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other valve options.
Similar products:
Valves – Switching Valves – ULC
- Best in class low carryover performance
- Simplifies OEM instrument design by using fewer valves
- CE, IP-65 Rating, REACH and RoHS compliant
Valves – Switching Valves – SRS
- Integrated manifold seal and PC mount capability
- Constucted of PBT and non-corrosive metal
- RoHS compliant
Valves – Switching Valves – Series 99-Gas
- Smallest footprint in its class
- High speed response times
- Pressures up to 1,250 psi
Valves – Switching Valves – Series 9-Gas
- 100% duty cycle in environmental temperatures of up to (105°C)
- pressures up to 1,250 psi (86.2 bar)
- Hydrocarbon and lubricant free
Valves – Switching Valves – Series 1-2
- Provides reliable operation for the life of your instrument
- RoHS compliant
- Low power for reduced heat generation
Valves – Switching Valves – R9
- High pressure options available up to 100 psi
- Low unswept volume to minimise carryover
- Particulate and crystallisation resistant
Variations: MX7 5VDC 2PIN 2W NC 6PSI SI, MX7 5VDC 2PIN 2W NC 30PSI FKM, MX7 5VDC 2PIN 2W NO 6PSI SI, MX7 5VDC 2PIN 2W NO 30PSI FKM, MX7 5VDC 2PIN 3W NC 6PSI SI, MX7 5VDC 2PIN 3W NC 30PSI FKM, MX7 5VDC 2PIN 3W NO 6PSI SI, MX7 5VDC 2PIN 3W NO 30PSI FKM, MX7 5VDC 2PIN 3W DIST 6PSI SI, MX7 5VDC PCB 2W NC 6PSI SI, MX7 5VDC PCB 2W NC 30PSI FKM, MX7 5VDC PCB 2W NO 6PSI SI, MX7 5VDC PCB 2W NO 30PSI FKM, MX7 5VDC PCB 3W NC 6PSI SI, MX7 5VDC PCB 3W NC 30PSI FKM, MX7 5VDC PCB 3W NO 6PSI SI, MX7 5VDC PCB 3W NO 30PSI FKM, MX7 5VDC PCB 3W DIST 6PSI SI, MX7 12VDC2PIN 2W NC 6PSI SI, MX7 12VDC2PIN 2W NC 30PSI FKM, MX7 12VDC2PIN 2W NO 6PSI SI, MX7 12VDC2PIN 2W NO 30PSI FKM, MX7 12VDC2PIN 3W NC 6PSI SI, MX7 12VDC2PIN 3W NC 30PSI FKM, MX7 12VDC2PIN 3W NO 6PSI SI, MX7 12VDC2PIN 3W NO 30PSI FKM, MX7 12VDC2PIN 3W DIST 6PSI SI, MX7 12VDCPCB 2W NC 6PSI SI, MX7 12VDC PCB 2W NC 30PSI FKM, MX7 12VDCPCB 2W NO 6PSI SI, MX7 12VDCPCB 2W NO 30PSI FKM, MX7 12VDCPCB 3W NC 6PSI SI, MX7 12VDC PCB 3W NC 30PSI FKM, MX7 12VDCPCB 3W NO 6PSI SI, MX7 12VDC PCB 3W NO 30PSI FKM, MX7 12VDC PCB 3W DIST 6PSI SI, MX7 24VDC2PIN 2W NC 6PSI SI, MX7 24VDC2PIN 2W NC 30PSI FKM, MX7 24VDC2PIN 2W NO 6PSI SI, MX7 24VDC2PIN 2W NO 30PSI FKM, MX7 24VDC2PIN 3W NC 6PSI SI, MX7 24VDC2PIN 3W NC 30PSI FKM, MX7 24VDC2PIN 3W NO 6PSI SI, MX7 24VDC2PIN 3W NO 30PSI FKM, MX7 24VDC2PIN 3W DIST 6PSI SI, MX7 24VDCPCB 2W NC 6PSI SI, MX7 24VDC PCB 2W NC 30PSI FKM, MX7 24VDCPCB 2W NO 6PSI SI, MX7 24VDCPCB 2W NO 30PSI FKM, MX7 24VDCPCB 3W NC 6PSI SI, MX7 24VDC PCB 3W NC 30PSI FKM, MX7 24VDCPCB 3W NO 6PSI SI, MX7 24VDC PCB 3W NO 30PSI FKM, MX7 24VDC PCB 3W DIST 6PSI SI
